TH Clip Lock Optima 730 (PPGI) Concealed-fixing System
RM0.00

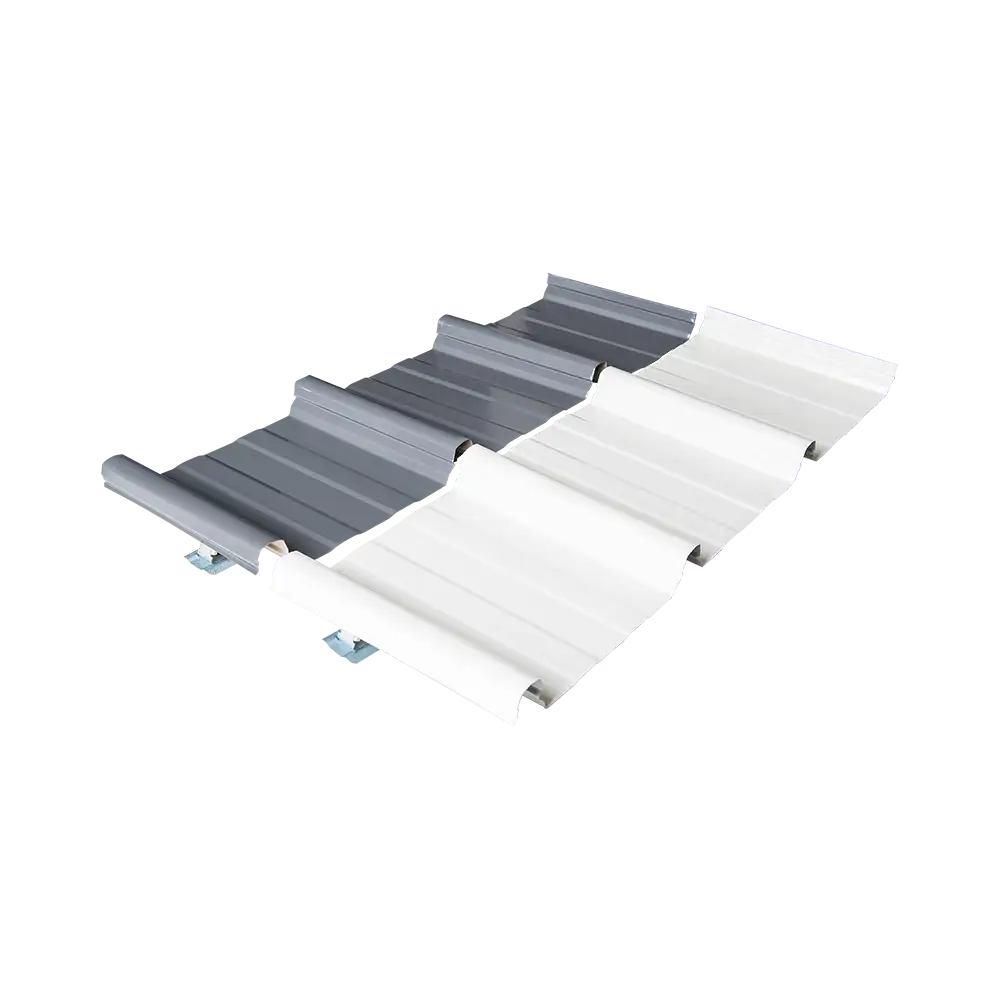

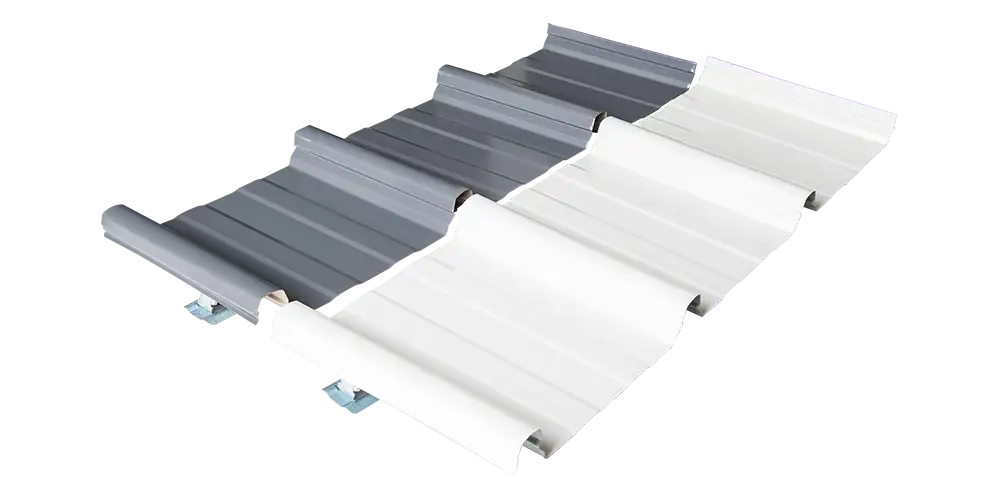

The TH Clip Lock Optima 730 is a wide-cover concealed-fixing cladding system made from high-tensile steel, designed with an innovative clip locking mechanism that ensures exceptional wind resistance, watertightness, and ease of installation.
- Clip locking system designed to withstand high wind pressure
- Made from high tensile 550 MPa yield strength steel
- Wide effective cover width of 730mm
- No visible fasteners for modern look
Wide Coverage with Clip Locking Technology
At 730mm wide, the TH Clip Lock Optima 730 boasts the widest coverage among standing seam metal roofing options. This translates to fewer panels needed, and an innovative clip locking system that offers excellent uplift performance and watertightness, making it a great choice for areas with high winds and ensuring long-lasting durability.
Made from high tensile 550 MPa yield strength steel, these panels are built to handle strong winds, ensuring they remain reliable over time.

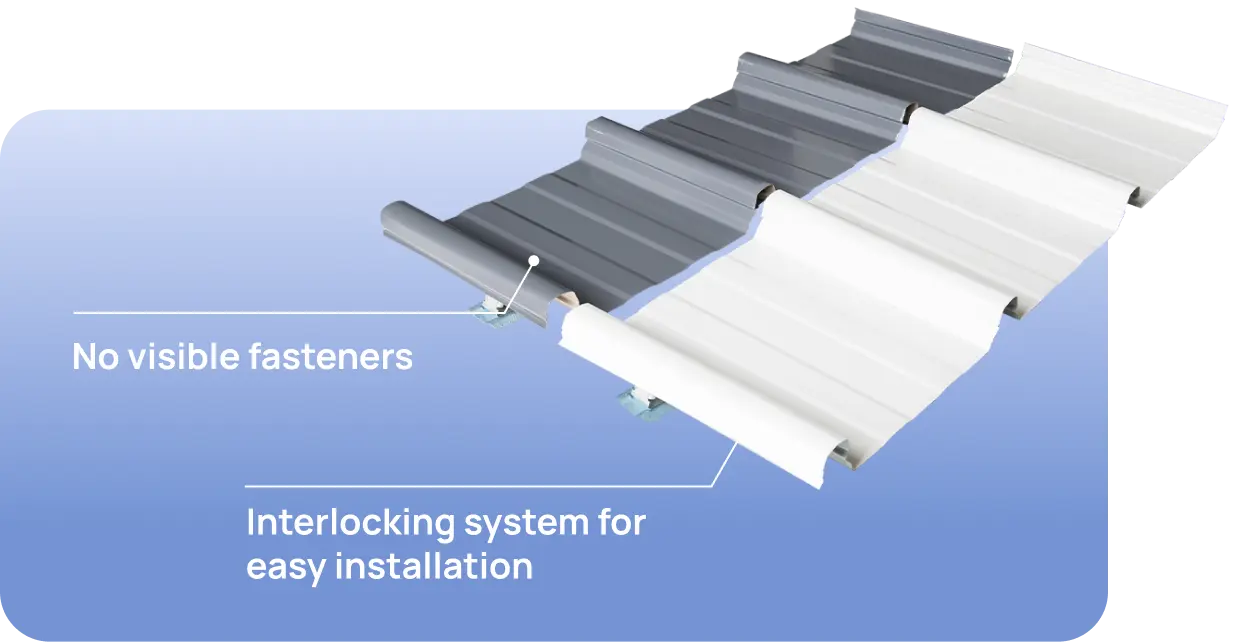

The special Clip730 clips make installation quick and straightforward, locking the panels in place without visible fasteners, which improves both security and appearance.

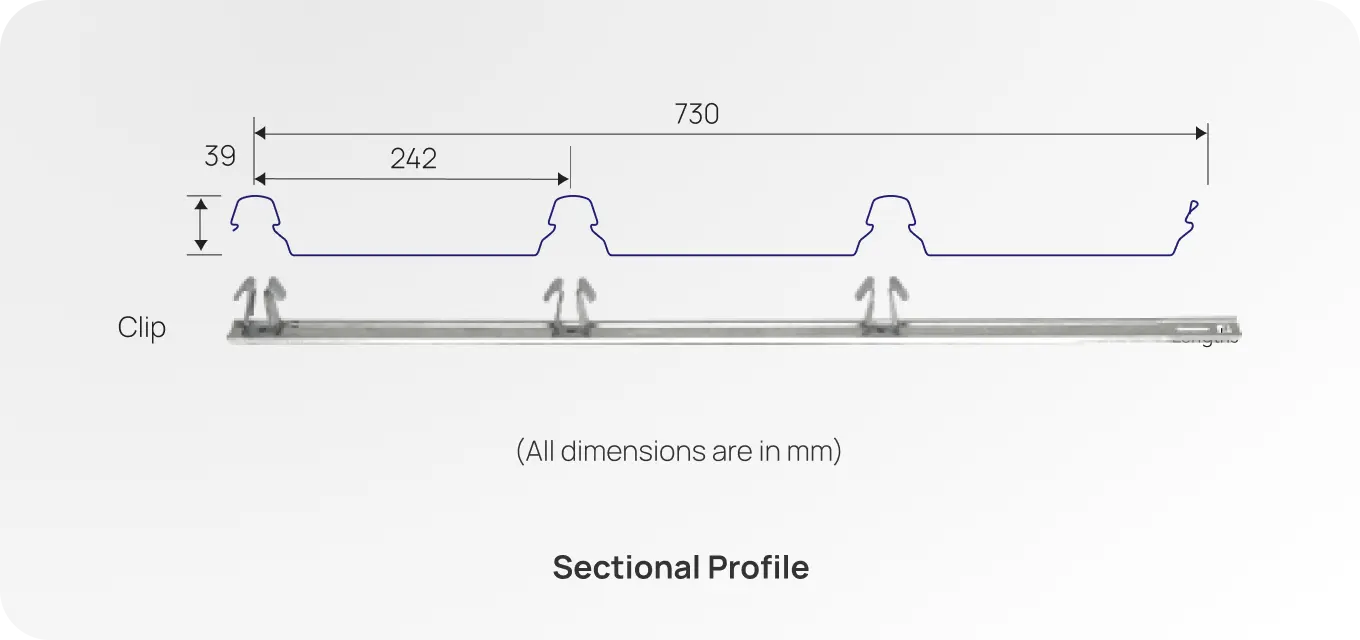

With a cover width of 730mm and ribs spaced at 242mm, the design reduces the number of seams and provides great coverage, helping with water drainage.
Ideal for Low-Slope Applications
TH Clip Lock Optima 730 is compatible for roofs as flat as 1°, it’s a perfect solution for areas with minimal rain where steeper pitches aren’t necessary.
No Visible Screws
The clip locking system keeps fasteners out of sight, giving the roof a clean, modern look and improving waterproofing.
Cost-Effective Choice
The combination of wide coverage and easy installation helps lower overall building costs, making it a budget-friendly option for various projects.
Quality Assured
Driven by visionary leadership and an unwavering commitment to quality, Thung Hing has consistently pushed the boundaries of innovation in the construction industry. Our dedication to delivering exceptional products and services has earned us numerous accolades, solidifying our position as a market leader.
Specifications
Dimension Details
Length
On site roll-forming from ridge to eave, i.e. single jointless sheets or custom cut
Tolerance
Thickness of material
Effective width
Finishing length
: ± 0.03mm
: ± 4mm
: ± 0-15mm
Dimension
Rib height
Effective cover
Minimum roof pitch
: 39mm
: 730mm
: 1°
Get a quote
Let’s talk about your project
- Let us understand your requirement and let our roof specialist customise a solution for you.
- 1-to-1 meeting to discuss how our products and solutions can help in your project.
| Weight | 10 kg |
|---|---|
| Dimensions | 50 × 50 × 30 cm |
