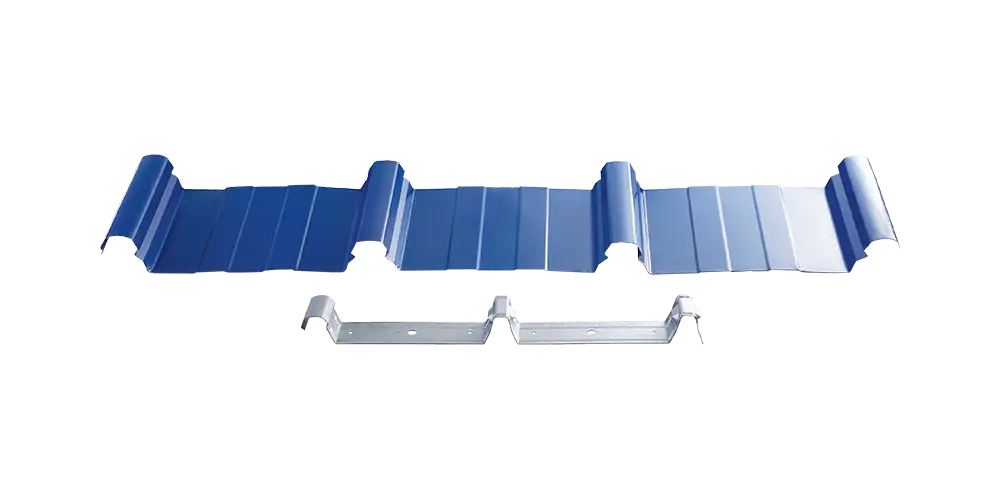

TH Clip Lock 710 (PPGI) Concealed-fixing System
The TH Clip Lock 710 is a high-tensile metal roofing solution featuring a concealed fixing system and smart rib design, ideal for low-pitched roofs with a sleek, durable finish.
- Suitable for low-pitch roofs as low as 1°
- Concealed fixing method with clip and locking system
- High-tensile for weather endurance
Watertight Protection with Modern Aesthetics
The TH Clip Lock 710 is a high-tensile metal roofing solution featuring a concealed-fixing system that combines exceptional durability with a sleek, modern appearance. Its innovative design includes an engineered ribbed pattern and a clip-locking system for superior strength, making it ideal for low-pitched roofs.

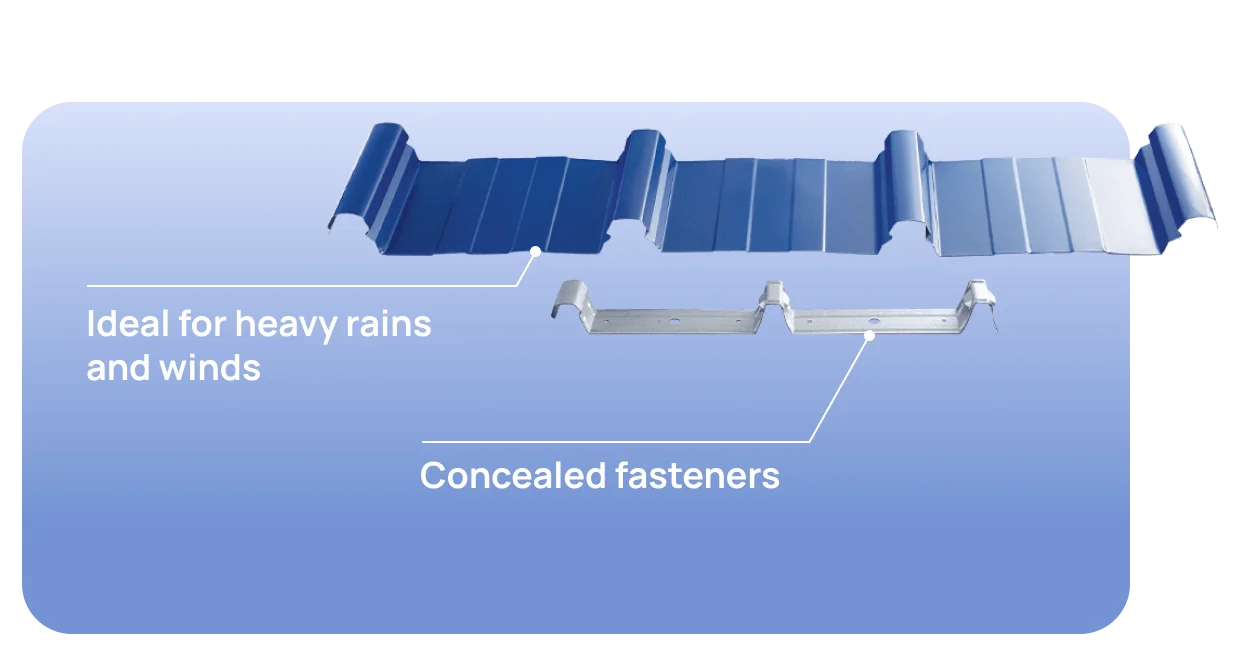

The concealed-fixing system and interlocking design ensure maximum water resistance.
Provides a wider effective coverage width of 710mm and a rib height of 39mm, optimising protection and reducing installation time.
The concealed-fixing method with a clip and locking system delivers a clean, uninterrupted look that enhances the building's aesthetic appeal.
Ideal for Low-Slope Applications
TH Clip Lock Optima 710 is compatible for roofs as flat as 1°, it’s a perfect solution for areas with minimal rain where steeper pitches aren’t necessary.
No Visible Screws
It features a concealed clip design, creating a clean, uninterrupted look that enhances your building’s aesthetic appeal.
Customisable Solutions
Available in various lengths and finishes to suit different project requirements.
Quality Assured
Driven by visionary leadership and an unwavering commitment to quality, Thung Hing has consistently pushed the boundaries of innovation in the construction industry. Our dedication to delivering exceptional products and services has earned us numerous accolades, solidifying our position as a market leader.
Specifications
Dimension Details
Tolerance
Thickness of material
Effective width
Finishing length
: ± 0.03mm
: ± 3mm
: ± 5mm

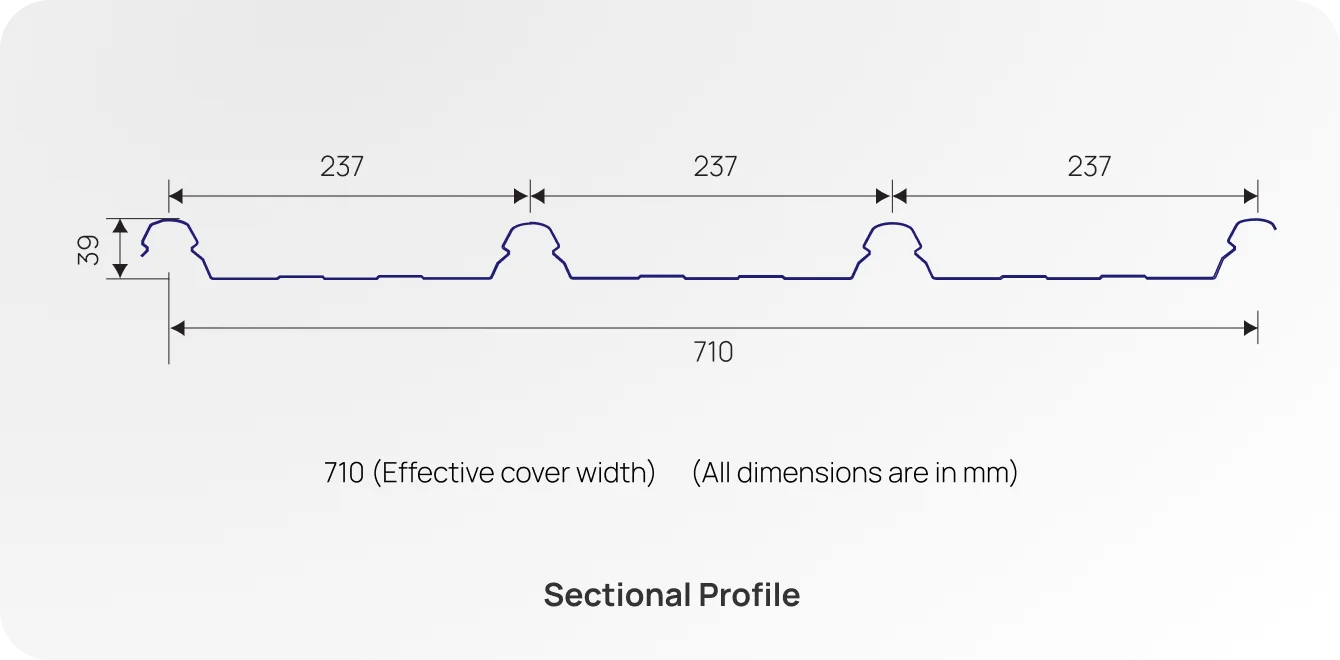

Dimension
Rib height
Effective cover
Minimum roof pitch
: 39mm
: 710mm
: 1 °
